Bases de datos, percepción remota y SIG aplicados a la
gestión ambiental |
|||
|
|
|
|||
|
Mapping of great erosion in cities of Kinshasa and Brazzaville, Equatorial Africa.
Mapeo de la erosión a gran escala en las
ciudades de Kinshasa y Brazzaville, África Ecuatorial. Mapeamento de erosões de grande porte
nas cidades de Kinshasa e Brazzaville, África Equatorial. |
Alyson Bueno Francisco Universidade Estadual Paulista, Brasil alysonbueno@gmail.com
Estudio de caso
Recibido: 21/5/2024 Aceptado: 10/10/2024 Publicado: 21/1/2025
|
|||
ABSTRACT
Since the 1980s,
gullies have been a problem for the cities of Kinshasa and Brazzaville, whose
research presents the case of 3 gullies located in the Congo River Basin in
urban and peri-urban areas. The objective of the research was to present a
digital model of elevation of urban gullies, with topographic data used in
engineering projects for future recovery. The acquisition of topographic data
was carried out through the Google Earth Pro software and the QGIS geographic
information system, with data processing for visualization in the Golden Surfer
software. The Laloux gully located in Kinshasa is one of the largest in the
world, with a length of 1,100 m and a 3-way format. The mouth of the city of
Brazzaville has a width of less than 40 m, but is more than 900 m long, in a
densely populated area. The Buma gully in Kinshasa is an example of the
development of the erosive process in a peri-urban area, with the expansion of
one of the largest cities on the African continent, being induced by the
existence of a road on a slope.
Keywords: gully, road, slope, topography
RESUMEN
Desde la década de 1980, los barrancos han sido un problema para las
ciudades de Kinshasa y Brazzaville, cuya investigación presenta el caso de tres
cárcavas ubicadas en la cuenca del río Congo en áreas urbanas y periurbanas. El
objetivo de la investigación fue presentar un modelo digital de elevación de
cárcavas urbanas, con datos topográficos utilizados en proyectos de ingeniería
para su futura recuperación. La adquisición de datos topográficos se realizó a
través del software Google Earth Pro y el sistema de información geográfica
QGIS, con procesamiento de datos para su visualización en el software Golden
Surfer. El barranco de Laloux, situado en Kinshasa, es uno de los más grandes
del mundo, con una longitud de 1.100 m y un formato de tres vías. La desembocadura
de la ciudad de Brazzaville tiene una anchura de menos de 40 m, pero tiene más
de 900 m de largo, en una zona densamente poblada. El barranco de Buma, en
Kinshasa, es un ejemplo del desarrollo del proceso erosivo en una zona
periurbana, con la expansión de una de las ciudades más grandes del continente
africano, siendo inducida por la existencia de una carretera en pendiente.
Palabras clave: cárcavas, carretera, talud, topografía
RESUMO
Desde a década de 1980, as boçorocas representam um problema para as
cidades de Kinshasa e Brazzaville, cuja pesquisa apresenta o caso de 3
boçorocas localizadas na Bacia do Rio Congo nas áreas urbanas e periurbanas. O
objetivo da pesquisa foi apresentar um modelo digital de elevação das boçorocas
urbanas, com dados topográficos utilizados em projetos de engenharia para
futura recuperação. A aquisição dos dados topográficos foi realizada através do
software Google Earth Pro e do sistema de informação geográfica QGIS, com
tratamento dos dados para visualização no software Golden Surfer. A boçoroca
Laloux localizada em Kinshasa é uma das maiores do mundo, com uma extensão de
1.100 m e um formato de 3 direções. A boçoroca da cidade de Brazzaville
apresenta largura menor que 40 m, mas possui extensão de mais de 900 m, em uma
área densamente povoada. A boçoroca Buma em Kinshasa é um exemplo de
desenvolvimento do processo erosivo em área periurbana, com expansão de uma das
maiores cidades do continente africano, sendo induzida pela existência de
estrada em declividade de encosta.
Palavras chave: boçoroca, encosta,
estrada, topografia
INTRODUCTION
Soil erosion has
become a major problem in equatorial and tropical areas after decades of
deforestation and changes in land cover. Despite being a natural phenomenon,
due to the seasonal rainfall, the intensity of soil losses is worrisome, since
they can generate direct problems, such as: silting of rivers, damage to
infrastructures and devaluation of real estate; and indirect problems, such as:
reduced food production and expenditure of public resources.
In the field, soil
losses are mainly notable with laminar erosion and loss of soil fertility, with
the formation of small incisions called furrows on the slopes. In the city,
soil losses are related to large-scale linear erosion, due to a higher concentration
of rainwater in drainage channels present in public roads (roads and avenues,
mainly). If urban erosion develops in a degraded area of a spring, the action
of surface and subsurface waters leads to the formation of the most worrisome
erosive form: the gully (Ionita et al., 2015).
As the gullies are
linear erosive forms, modifying the terrain, mapping studies need to adopt the
topographic scale in order to generate data for future urban erosion control
projects and academic investigations to analyze the evolution of the phenomenon.
From the topographic data of the area degraded by the gully, it is possible to
generate models in geographic information systems for topographic scale mapping
(Barrio et al., 2018).
Based on
technological resources, with remote sensing images of high spatial resolution
and the existence of geodetic equipment linked to the data of the global
positioning system by satellite, the surfaces of the gullies can be represented
in digital bases of geographic information systems, for the generation of
models. Through models with high topographic scale resolution, analysis with
topographic and cross-sectional profiles can be carried out, with data
associated with information about soil and sediments (Walker et al., 2021).
Since the 1960s, soil erosion in geological formations dating back to the Quaternary in the Congo River Basin has been studied by De Ploey (1965 apud Lateef et al., 2010).
Imwangana et al. (2014)
present the topographic data and morphometric analysis on the large linear
erosions that were induced by urban roads in Kinshasa. With aerial photographs
from 1977, 13 km of linear erosion perimeter were identified in Kinshasa. From
the analysis of high-resolution remote sensing images, 334 linear erosions
(ravines and gullies) were identified, with a total perimeter of 102 km, in the
urban area of Kinshasa.
In relation to the
containment measures of the gullies in Kinshasa, the Laloux Gully presented
problems of upstream erosion in 2009, with the destruction of the urban macro
drainage systems; and the head of the gully was controlled with a work in 2012
(Imwangana et al., 2014).
Based on theoretical
considerations, this work aims to present an updated analysis of the Laloux
Gully in Kinshasa, and another gully located in the peri-urban area, with the
inclusion of a third example of one of the largest gully in Brazzaville city.
Characterization of
area
The Congo River Basin presents factors related to the trend
of processes for soil losses, such as: precipitation in the equatorial climate
with annual averages of 2,300 mm, geological substrate with sedimentary rocks
dated to the Cenozoic and Quaternary; sandy and deep and homogeneous soils;
deforestation since the nineteenth century with expansion of urbanized areas
since the 1980s (Mushi et al., 2019).
Regarding the Physical Geography related to the development
of gullies in Kinshasa, capital of the Democratic Republic of Congo, the
characterization of Geology and the relations with the development of
large-scale linear erosions, the Laloux and Buma gullies, from the city of
Kinshasa, are located in sandstones of the Tendre Formation of the Inkissi
Group, dated from the Cretaceous period. The sandstones of the Tendre Formation
behave as unconfined aquifers, with the water table present at a depth of 8 m
from the ground. The presence of subsurface waters of the unconfined aquifer
favors the development of the gullies due to the action of internal tubular
erosion (Lateef et al., 2010).
Regarding the urban expansion in Kinshasa, the rural exodus
and the high fertility rate favor the increase of the urban fabric, whose
metropolis exceeds 17 million inhabitants, with an area of approximately 500
km². The urban morphology in Kinshasa, since the time of colonization in the
nineteenth century, has an orthogonal format with the existence of rectilinear
avenues in the direction parallel to the slopes. Most of the urban roads on the
outskirts of Kinshasa do not have asphalt and rainwater drainage (Wouters &
Wolff, 2010).
About Physical Geography in the Republic of Congo, in the
city of Brazzaville, the geological substrate is formed by sandstones of the
Bateké Formation of the Inkissi Group. The geomorphology of the city of
Brazzaville is formed predominantly by terraces dating from the Quaternary,
with the formation of medium and small linear erosions. As a result of the
slopes in watersheds and urban drainage due to the expansion of the city of
Brazzaville, there is the development of gullies with approximately 300 m of extension
on the slopes, with a very friable geological substrate dating from the
Quaternary (Malanda et al., 2023).
The relief of the analyzed area is formed by the plateau of
the Lower Congo River Basin with terraces composed of terrain susceptible to
erosive processes, dating from the Quaternary and the Cenozoic (Mushi et al.,
2019).
Regarding the susceptibility to erosion of the terrain of the
urban site of Brazzaville, Kempena et al. (2016) highlighted that 4% of the
soil is at high risk of loss, when considering erodibility. From the analysis
of land cover conditions and the other factors of the Universal Soil Loss
Equation, it was found that 8% of the urban site of Brazzaville has a high
potential for water erosion (Kempena et al., 2016).
Malanda et al. (2023) presented the risk of developing a
bulge called Ngamakosso Erosion, with serious damage to the infrastructure of
the Talangai neighborhood, northeast of the city of Brazzaville.
The map in Figure 1 shows the location of 3 major urban
erosions studied, with their distribution in geological formations dated to the
Quaternary and Cenozoic.

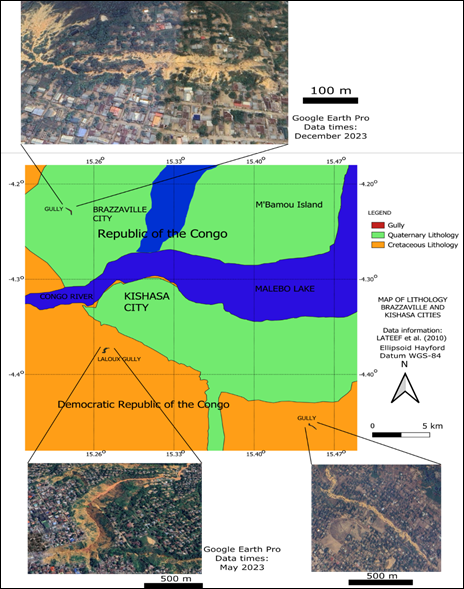

Figure 1. Gullies in
Brazzaville and Kinshasa with highlights in Geology Formation.
Source: Elaboration of
author.
The city of
Brazzaville is located in a terrain with Quaternary sedimentary formations,
highly friable with the presence of cliffs and dunes, with erosions of 400 m in
length on average.
MATERIAL AND METHODS
The applied
methodologies were derived from Geoprocessing, with the use of a geographic
information system, software for image editing and acquisition of geographic
data based on the Web.
In the acquisition of
remote sensing images, Google Earth Pro was used, where the features were
vectorized to generate files of the polygons of the mapped gullies.
To obtain the
elevation dimensions, the terrain was activated in the Google Earth Pro view,
with the annotation of the UTM coordinates and dimensions in a spreadsheet of
rows and columns. In the Golden Surfer application, topographic maps of the
gullies were generated, with the cartographic conventions of legends in
hypsometry. To generate model terrain of gullies in software Golden Surfer used
triangulation and linear interpolation method in spatial analysis.
Based on the
geological map presented by Lateef et al. (2010), the geological formations
were vectorized in the database of the geographic information system QGIS. In
QGIS it was possible to define the datum and cartographic conventions, as well
as the graphical scales.
When considering the
topographic data of the urban basins, the rational method of maximum flow
proposed by Pal & Pani (2016) was applied to estimate the flow in the
gullies during voluminous rainfall of 30 mm.
In the Inkscape
application, the editions of the cards were carried out with the insertion of
images and symbology to represent the locations.
RESULTS
Urban erosion in
Kinshasa
Probably, the Laloux
gully is one of the largest in the world in urban areas. This erosive shape
impresses with its shape and dimensions. Its format took 3 directions: first
downstream with the bed of the watercourse, the second in the direction of the
slope, and the third in the same direction as the Bolikango Avenue.
According to remote sensing data, in 2004 the Laloux Gully had 850 m of long.
Currently, Laloux
Gully is 1,100 m long, located downstream of Bolikango Avenue, located about 9
kilometers from the city center of Kinshasa. The area of the Laloux gully has
approximately 10 hectares. The maximum width reaches 150 m, with an average width
of 100 m.
The Laloux gully not
only impresses with its dimensions but also stands out for its longitudinal
shape in the letter S, with 3 directions of its bed. The head of the gully is
located at an elevation of 420 m, exactly on the same bed as Bolikango Avenue, with
a ramp at a maximum level of 447 m, 1,042 m long (slope of 3.5%). Figure 2
shows topography in area of Laloux gully, with levels of relief between 420 and
320 meters.
Figure 2. Topographic chart of
Laloux Gully.
Source: Elaboration of
author.
The contribution
basin of the Laloux gully has an area of approximately 2.5 km, in urban density
in the form of land use. Was estimated a maximum flow of 14.6 m³/s in
contribution basin’s Laloux gully.
The gully of Buma
district is located 22 km from the center of Kinshasa, being a peri-urban
erosion. It is from a headwater of the tributary of the Ntshuenge River, one of
the main urban tributaries of the Congo River. This urban erosion is 1,070
meters long, with an average width of 40 m.
About the genesis of
this peri-urban erosion, in 2014 the gully was only 200 m long, arising from an
upstream erosion of the headwaters of the Ntshuenge River. From 2016 onwards,
the gully developed on the same bed of a public road that connects to a road,
in the Buma neighborhood of the city of Kinshasa. In 2016, the gully was 500 m
long. In 2018, in just 2 years, the gully expanded 375 m, reaching 875 m in
length. In 2021 the peri-urban erosion reached its maximum length with 1075 m,
with the development of its depth. Between 2018 and 2023, the gully expanded by
only 135 m. The contribution basin of this erosion has an area of 550,000 m².
Buma road, upstream of gully is 4.4 km long with an elevation between 432 and
380 m, with an average slope of 11.8%. Downstream and northwest, a branch of
the Boma gully began in the same direction as the road. Figure 3 shows
topographic conditions of terrain in area of Buma’s Gully in Kinshasa.
Figure 3. Topographic chart of
Buma Gully.
Source: Elaboration of
author.
Urban Erosion in
Brazzaville
The gully of P20 road
in city of Brazzaville, in this text called Brazzaville Gully, has an area of 6
hectares with approximately 900 m of extension.
Despite having a
shallower depth and width than the Kinshasa’s gullies, the Brazzaville Gully
has a large extension with 2 senses. Figure 4 shows the topography conditions
in the degraded area of Brazzaville Gully.

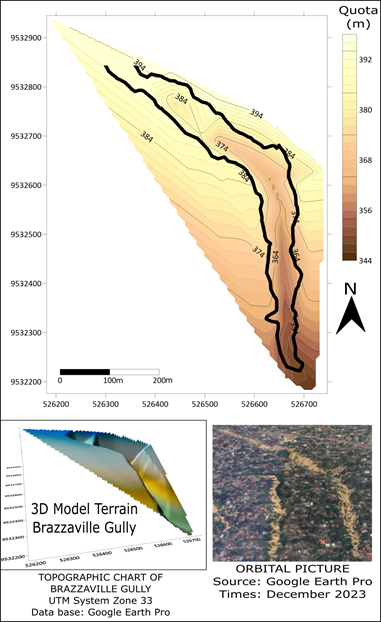

Figure 4. Topographic chart of
Brazzaville Gully.
Source: Elaboration of
author.
The contribution
basin of the Brazzaville Gully has an area of approximately 0.75 km, in urban
density in the form of land use. Was estimated maximum flow of 3.7 m³/s in
contribution basin’s Brazzaville gully.
The city of
Brazzaville is located in a terrain with Quaternary sedimentary formations,
highly friable with the presence of cliffs and dunes, with erosions of 400 m in
length on average.
DISCUSSION
In summary, each
gully analyzed in this research has its autochthonous characteristics.
The Laloux Gully,
having several decades, has large dimensions in width, extension and depth,
with a rear-stream erosion due to the bed of the Boukingo Avenue. Another
aspect that hinders the control of urban erosion in the Laloux Gully is the
absence of vegetation cover for stability, which is common in gullies over 20
years old. According to Imwangana et al. (2014), the government of the
Democratic Republic of the Congo has implemented 2 macro-drainage builds to
control the Laloux Gully, but the upstream erosion activity destroys the
macro-drainage galleries. The conditions of precipitation concentrated in the
equatorial climate and the implementation of asphalt in the urban roads of the
city of Kinshasa were factors that maintained the upstream erosion at the head
of the Laloux Gully. The densely populated area of one of Africa's largest
cities makes it difficult to control urban erosion, due to the deposition of
solid waste and rubble in the headwaters of the Laloux Gully.
The gully of the Buma
neighborhood in Kinshasa is a classic example of peri-urban erosion that
developed on the same roadbed. The morphology of the urban roads in the Boma
neighborhood depends on the road located 20 km from the center, but the
circulation road itself was destroyed by the action of soil degradation.
The gully of the Boma was not extended only because the local topography
reached a lower level of a lap of a headwater. Although the average width of
the gully is 35 m, the most downstream part is more than 50 m wide with a depth
that exposes the deep sandy and homogeneous soil, being easily eroded during
the rains.
Brazzaville’s Gully
developed in a Quaternary substrate terrain, with high fragility. In addition
to this natural susceptibility factor, the gully arose in an area that was
landfilled for the urban expansion of an area close to the airport. In this
case, the gully wasn’t specifically developed due to induction by runoff
through a public road (road, ex.), but by the drainage itself in an embankment
area. In view of these aspects, Brazzaville’s gully is hard to control due to
the drainage of an old, grounded watercourse and a terrain highly susceptible
to erosion. The only advantage from a perspective of gully’s control is
the existence of vegetation that has regenerated, unlike the other 2 examples.
In common, the 3
examples of the gullies analyzed, it is possible to notice the presence of a
deep and homogeneous soil, of light color by the remote sensing images, with a
tendency of high erodibility.
Regarding the
morphology of the gullies, one direction in the valley of the Boma's Gully, 2
directions in the Brazzaville’s Gully, and 3 directions in the Laloux Gully
were highlighted in the geomorphological conditions; in which it would be
interesting to study the characteristics of soil granulometry with local plots.
CONCLUSIONS
Soil erosion is a
phenomenon, which in the case of gullies leaves marks on the landscape, with
risks mainly in urban areas. Faced with this problem that affects poor regions
in equatorial and tropical climates, the very important measure is to quantify
and delimit the degraded area. Therefore, mapping on a local scale, with
topographic data, is important for future projects to control urban erosion and
possibly solve the problem.
The water erosion in
urban and peri-urban areas needs to have studies on the conditions of land use
and occupation in micro watersheds, in order to ensure the correct direction of
rainwater and adequate works for urban erosion.
Recent technologies
for the acquisition of geographic data with Geoprocessing contribute to the
existence of maps and information for technical professionals in the
elaboration of projects for urban erosion control and city planning. In the
case of the African continent, the action of projects depends on external
resources, with the importance of reports and articles to justify the erosion
control proposal. Universities can produce knowledge through dialogue
with technical professionals in the extension of activities in favor of society
and the environment.
BIBLIOGRAPHIC
REFERENCES
Barrio, P.O.,
Campo-Bescós, M.A., Giménez, R. & Casalí-Salasíbar, J. (2018) Assessment of
soil factors controlling ephemeral gully erosion on agricultural fields. Earth
Surface Process and Landsforms, 43(9), 1993-2008. http://dx.doi.org/10.1002/esp.4347
Imwangana, F.M.,
Dewitte, O., Ntombi, M. & Moeyersons, J. (2014) Topographic and road
control of mega-gullies in Kinshasa (DR Congo). Geomorphology, 217,
131-139 http://dx.doi.org/10.1016/j.geomorph.2014.04.021
Ionita, I., Fullen,
M.A., Zglobicki, W. & Poesen, J. (2015) Gully erosion as a natural and
human-induced hazard. Natural Hazards, 79(Suppl 1). http://dx.doi.org/10.1007/s11069-015-1935-z
Kempena, A.,
Guardado, R.L. & Bilembi, D. (2016). Estimating soil loss by water erosion
in the microwatersheds of Brazzaville city. International Journal of Science
and Research, 12(5), 1623-1626. http://ninive.ismm.edu.cu/handle/123456789/2460
Lateef, A.S.A.,
Fernandez-Alonso, M., Tack, L. & Delvaux, D. (2010) Geological constraints
on urban sustainability, Kinshasa City, Democratic Republic of Congo. Environmental Geosciences, 17(1), 17-35. https://archives.datapages.com/data/deg/2010/EG0110/EG08007/EG08007.HTM
Malanda, N., Madiela, B. D., Mbaki, V.R., Bidimbou, S.P.K., Nsongo, T.
& Louzolo-Kimbele, P. (2023). Diagnosis and Qualitative Estimation of the
Hydric Erosion in Watershed of Talangaï (Brazzaville) by the Application of
Geographical Information System (GIS). American Journal of Environmental
Protection, 12(2), 40-57. http://www.amjep.org/article/10.11648/j.ajep.20231202.12
Mushi, C.A., Ndomba,
P.M., Trigg, M.A., Tshimanga, R.M. & Mtalo, F. (2019). Assessment of
basin-scale soil erosion within the Congo River Basin. Catena, 178(2),
64-76. https://www.sciencedirect.com/science/article/pii/S0341816219300803
Pal, R. & Pani,
P. (2016) Seasonality barrage regulated hydrology and flood scenarios of Ganga
River: a study based on MNDWI and simple Gumbel model. Model Earth System
Environmental, (2)57 https://link.springer.com/article/10.1007/s40808-016-0114-x
Walker, S.J., Dijk,
A.I.J.M., Wilkinson, S.N. & Hairsine, P.B. (2021) A comparison of hillslope
drainage area estimation methods using high-resolution DEMs with implications
for topographic studies of gullies. Earth Surface Processes and Landsforms,
15(11), 2229-2247. https://onlinelibrary.wiley.com/doi/10.1002/esp.5171
Wouters, T. &
Wolff, E. (2010) Contribution à l'analyse de l'érosion intra-urbaine à
Kinshasa. Belgian Journal of Geography, 3(1), 293-314. https://journals.openedition.org/belgeo/6477
